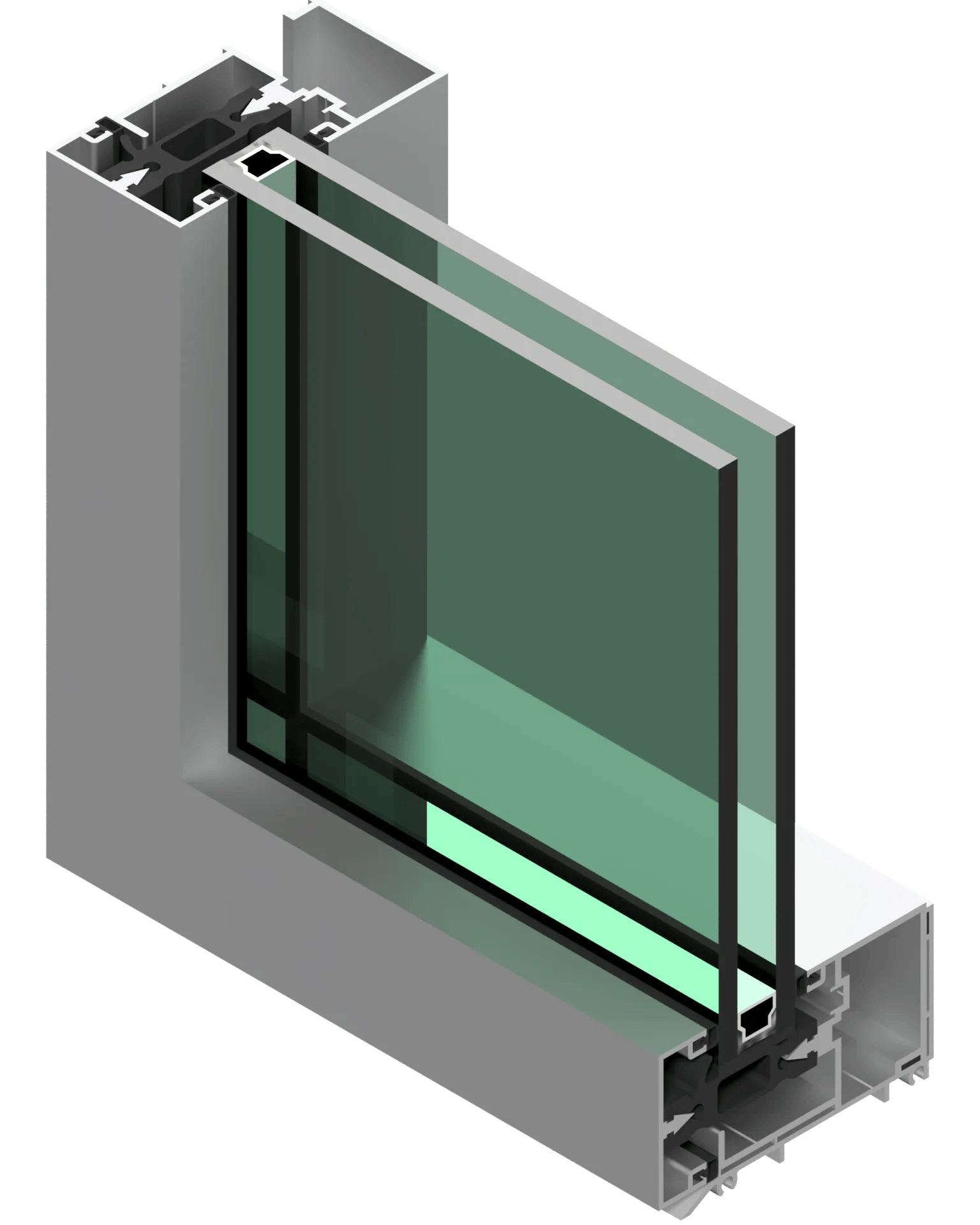

This storefront framing is compatible with all EFCO doors. Face caps and optional butt-blazed vertical mullions enhance the system’s appearance. Durable anodized and painted finishes provide long-lasting protection and color options.
This thermal performance storefront is ideal for retail, office, healthcare, education and other commercial buildings. Screw Spline
 FACE WIDTH |  OVERALL DEPTH |  GLASS |  AIR |  WATER |  STRUCTURAL |  ACOUSTICS |
|---|---|---|---|---|---|---|
| 1-3/4" | 2-3/4" - 8-1/8" | 1/4" - 1-1/16" | <0.06CFM/FT2 @ 6.24 PSF | 12 PSF – Static | L/175 | Screw Spline: STC 45 OITC 39 |
| FACE WIDTH | GLASS |  HEIGHT |  IMPACT RESISTANCE | STRUCTURAL |  GLAZE MAKEUP* |  DOD TEST |
|---|---|---|---|---|---|---|
| 1-3/4" | 1/4" - 1-1/16" | 2-3/4" - 8-1/8" | L/175 |
| FACE WIDTH | DEPTH | GLASS | AIR | WATER | STRUCTURAL | U-FACTOR |  CRF | ACOUSTICS |
|---|---|---|---|---|---|---|---|---|
| 1-3/4" | 2-3/4" - 8-1/8" | 1/4" - 1-1/16" | <0.06CFM/FT2 @ 6.24 PSF | 12 PSF – Static | L/175 | Shear Block: | Shear | Screw Spline: STC 45 OITC 39 |
