SUN CONTROL PRODUCTS

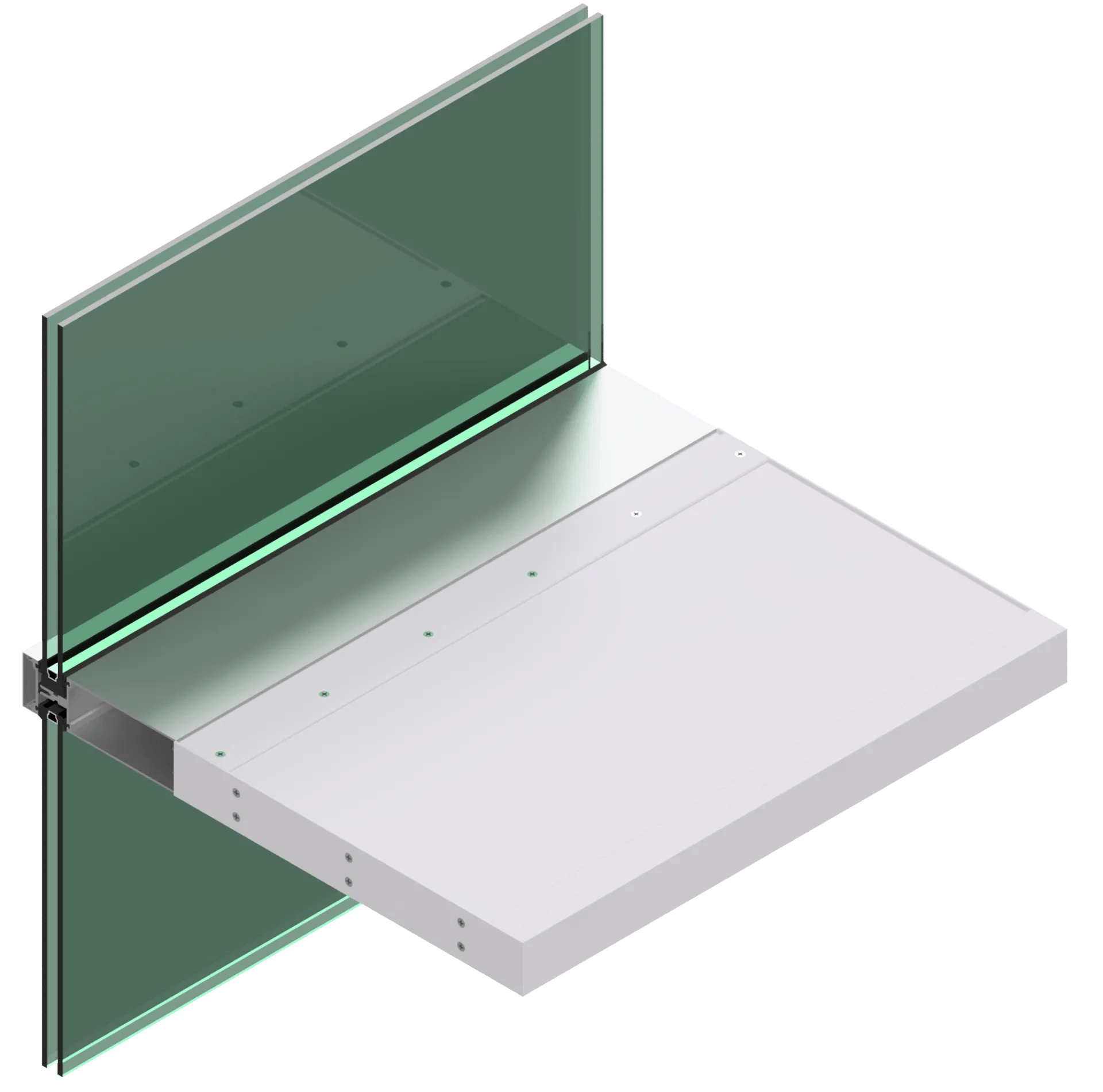

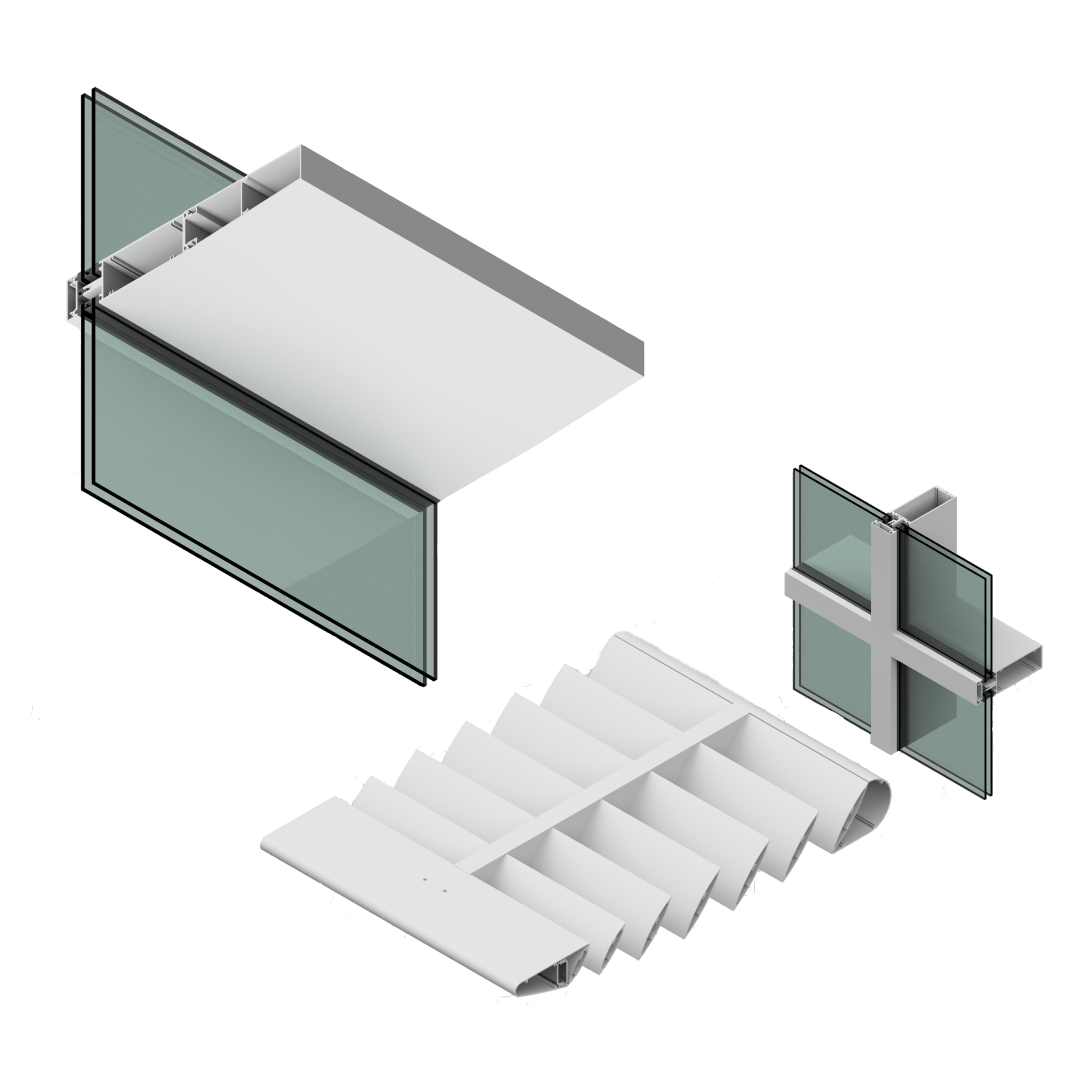

- Light shelves and sun shades
- Thermally improved mullion attachments
- Finished with curtainwall framing for consistency in color and texture
- Modular design and integral alignment features for ease of installation
- Up to 84″ spans at 65 psf
- 5″ airfoil-shaped, multiblade profile – 3 to 6 blades depending on depth
- Straight outrigger in 20″, 25″, 30″ and 35″ depths
- Up to 96″ spans unspliced, or up to 149″ spans spliced

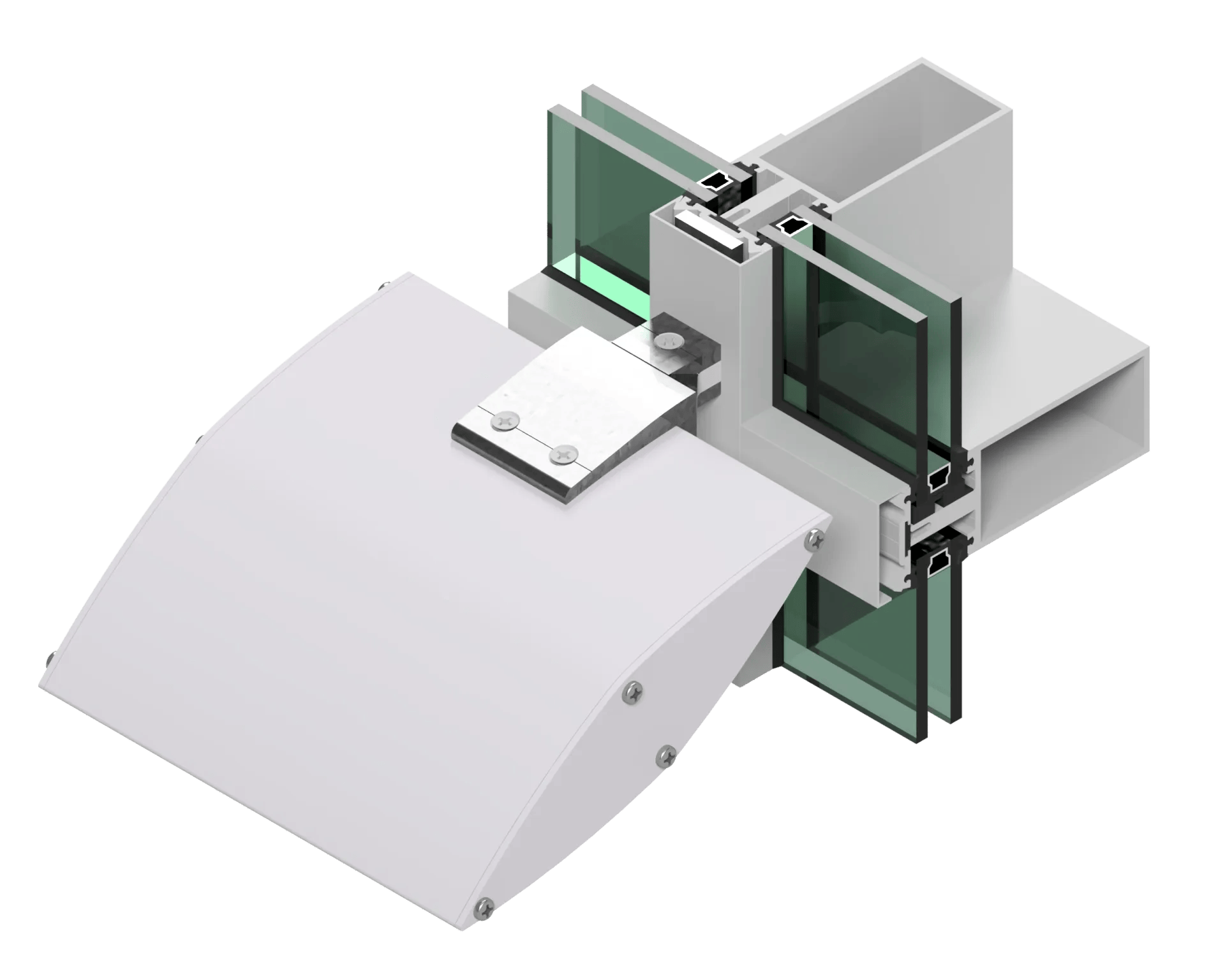

- 6″ or 9″ airfoil-shaped, single, horizontal blade
- Two-piece mounting bracket
- Up to 142″ spans at 65 psf
- 2-3/4″-diameter, round, multiblade profile – 3 to 6 blades depending on depth
- Curved outrigger in 20″, 25″, 30″ and 35″ depths
- Tubular-shaped fascia style
- Up to 56″ spans at 65 psf
- 5-1/4″ Z-shaped, multiblade profile – 3 to 6 blades depending on depth
- Straight outrigger in 20″, 25″, 30″ and 35″ depths
- Box-Shaped fascia style
- Designed for EFCO curtain wall and storefront systems
- Components fabricated from 6063-T6 aluminum
- Anodized and painted finishes available
- Screw spline construction
- Sunshade “Arms” available in (5) standard lengths: 20″, 24″, 28″,32″ and 36″.
- Sunshade “Blades” available in seven standard shapes: 2 1/2″ deep to 4″ deep by 3/4″ wide.
- Sunshade components fabricated from 6063-T6 aluminum
- Sunshade Clip and Arm are fabricated on CNC machine
- Screw spline construction
- Sunshade designed specifically for EFCO curtain wall systems
- Anodized and painted finishes available
