Designed for street-level and low-rise applications in energy-efficient buildings, Tubelite T14000 Series Storefront systems feature:

• Thermally broken framing with single-cavity poured-and-debridged (P&D) thermal barrier
• 2″ by 4-1/2″ aluminum framing profiles
• Allowance for 1/4″ to 1-1/8″ exterior glazing or infill panels
• Center-set, outside or inside flush-glazed
• Screw-spline or shear-block construction

Save time in the field and reduce project labor costs with inside or outside glazing. Our system design is based on #12 screw fasteners to greatly decrease rework in the field. Extra-heavy intermediate verticals are available for high-performance wind load requirements.

Our storefront framing also is compatible with our operable vents, sun shades, and standard or thermal Tubelite Narrow, Medium and Wide Stile Doors. Durable anodized and painted finishes provide long-lasting protection and color options.

This thermal performance storefront is ideal for retail, office, healthcare, education and other commercial buildings.

T14000 Storefront SPECIFICATIONS

FACE WIDTH	OVERALL DEPTH	GLASS	AIR	WATER	STRUCTURAL	ACOUSTICS
2"	4-1/2″	1” std. (1/4″ to 1-1/8″)	0.06 CFM/Ft.2 @ 6.24 PSF	12 PSF – Static 12 PSF – Dynamic	30 PSF – Design 45 PSF – Overload	STC: 31 STC: 38 OITC: 26 OITC: 31 STD. 1" IGU 1-1/16" Lami.

FACE WIDTH	GLASS	HEIGHT	IMPACT RESISTANCE	STRUCTURAL	GLAZE MAKEUP*	DOD TEST
2"	1” std. (1/4″ to 1-1/8″)	4-1/2″		30 PSF – Design 45 PSF – Overload

FACE WIDTH	DEPTH	GLASS	AIR	WATER	STRUCTURAL	U-FACTOR	CRF	ACOUSTICS

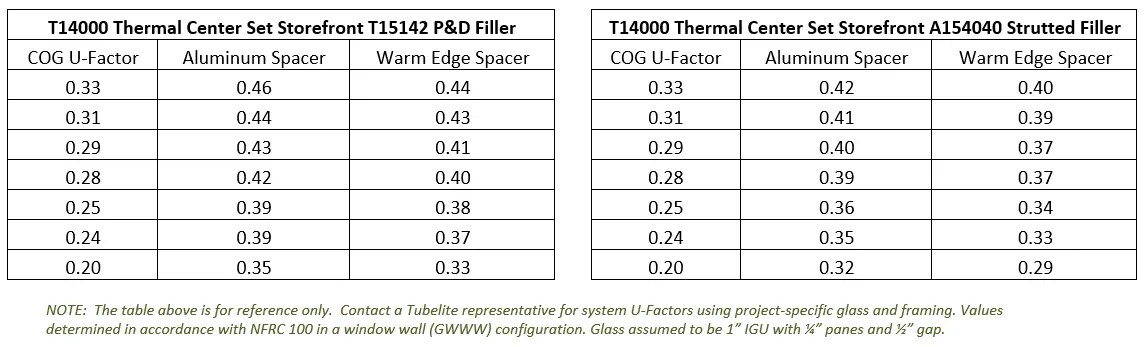

2"	4-1/2″	1” std. (1/4″ to 1-1/8″)	0.06 CFM/Ft.2 @ 6.24 PSF	12 PSF – Static 12 PSF – Dynamic	30 PSF – Design 45 PSF – Overload	0.32 SEE TABLE	71	STC: 31 STC: 38 OITC: 26 OITC: 31 STD. 1" IGU 1-1/16" Lami.

FACE WIDTH

DEPTH

GLASS

AIR

WATER

STRUCTURAL

U-FACTOR

CRF

ACOUSTICS

4-1/2″

1” std.
(1/4″ to 1-1/8″)

0.06 CFM/Ft.2
@ 6.24 PSF

12 PSF – Static
12 PSF – Dynamic

30 PSF – Design
45 PSF – Overload

0.32

71

STC: 31 STC: 38
OITC: 26 OITC: 31
STD. 1" IGU 1-1/16" Lami.

Listed performance dependent on glass selection. Specific details found in test data. Contact your sales representative for more information. Product performance information subject to change.
