- Interior-installed design preserves exterior appearance and simplifies renovation
- SEAL enhances acoustic, thermal efficiency, and air infiltration
- Slim, durable aluminum frames with high-performance finish options
- Optional between-glass venetian blinds with no exposed cords for daylight or privacy control
- The 1297 SEAL is compatible with monolithic or laminated glazing
- The 1437 SEAL is compatible with insulating glass for improved thermal performance
- Field-accessible designs support cleaning, maintenance, and custodial operation
- Practical, cost-effective solution for retrofit and adaptive reuse
- Interior retrofit installation preserves exterior appearance and simplifies renovation
- Impact-resistant design drop-tested to 2,000 ft-lb for behavioral health and secure-care safety
- Tamper-resistant hardware for high-risk environments
- SEAL performance upgrade improves sound, energy, air, and light control
- Optional between-glass venetian blinds with no exposed raise / lower cords
- Compatible with polycarbonate or laminated glazing for added protection
- Custodial-access operation for safe cleaning, ventilation and maintenance
- Durable aluminum construction with high-quality finish options
- Available in projected and fixed configurations
- Thermally broken framing and sash with insulating thermal barrier
- AAMA AW110PG
- 2″ aluminum frame depth with 3-3/16″ face width
- Allowance for 1″ monolithic glazing, dual- and triple-glazed IGUs or infill panels
- Accessible operation per AAMA 513
- Optional integral window blinds, subframes, mullions, screens, sills and other hardware
- Factory-fabricated, pre-glazed units with pressure-equalized design
- Mortise-and-tenon aluminum frame construction with mitered and angle-reinforced window corners
- Zero Sightline Exterior
- Factory Four-Side Silicone Glazing
- AAMA AW-Class Performance
- Two Structural Depth Options – 3250-Z (3¼”) for standard curtainwall inserts; 4250-Z (4″) for larger openings and higher wind loads.
- Project-Out Awning or Casement Vent Configurations
- Concealed Stainless-Steel Hardware – Four-bar friction hinges and multi-point locking (4250-Z)
- Thermally Broken Aluminum Framing
- Compatible with SSG & Captured Systems – Designed for two- and four-side structural glazed curtainwalls or traditional captured systems.
- Supports High-Rise Performance Requirements
- Interior-Accessible, Low-Maintenance Design
- 3-1/4” frame depth
- OX, XO, XOX, XX configurations
- Accommodates glazing units from 1/8” to 1” depth
- Three sill heights available (low, medium, tall)
- Steel ball bearing rollers over a raised sill track
- 3-1/4” frame depth
- Outside glazed louver design
- Inside glazed panel design
- Optional bird and insect screen
- AAMA AW-120 performance
- 2,000 ft-lb simulated human-impact resistance tested to AAMA 501.8
- 4″ thermally broken aluminum frame
- Fixed or side-hinged in-swing casement vents
- Concealed hinges, tamper-resistant locking hardware
- Triple glazed capability supports laminated and polycarbonate glazing
- Interior (access panel glazing) – 7/16” or 9/16” tempered laminated, ½” polycarbonate & 19/32” glass-clad polycarbonate
- Optional between-glass blinds
- Supports compliance with security and design standards required by agencies such as New York State Office of Mental Health (NYS-OMH), , VA, and other regulatory bodies
- AAMA AW40 to AW60 air, water, and structural performance
- 2,000 ft-lb simulated human-impact resistance tested to AAMA 501.8 for behavioral health safety and occupant well-being.
- 4″ and 4-5/16″ thermally broken aluminum frame
- Fixed configuration
- Optional between-glass blinds
- Triple glazed
- Designed for secure, healing environments, the 4000i-DTFX meets or supports compliance with security and design standards required by agencies such as New York State Office of Mental Health (NYS-OMH), VA, and other regulatory bodies
- Available in projected and fixed configurations
- System depth: 3-1/4”
- Sight Lines: 2-27/32″ Head/Hinge Jamb 3-5/32″ Sill (Awning and Casement), 1-1/2″ (Fixed)
- Dry-glazed with heel bead: Can remove glass from building interior
- Integral water management: Any water penetrating past weather-stripping is redirected to building exterior
- Up to 1-3/8” glass thickness: Quieter interior environment
- Customizable perimeter and intermediate grid: Economic grid customization to match existing sightlines
- Tested to AAMA 513: Easier window operation for the elderly and disabled
- Projected configuration
- Thermally broken frames
- Nominal 4″ overall depth from face of glass to rear of unit (w/1″ IGU)
- Accommodates 1” glazing
- Structural silicone glazed option
- 2-7/8″ frame depth with polyamide thermal barrier
- Divided Lite muntin grids—each lite uses an individual IGU
- Simulated Divided Lites or “simulated grids” available
- Fluted perimeter glazing rebates to match existing putty-glazed windows
- 1 1/16” sightline at thermal barrier muntin
- Custom panning, receptors, sill adaptors, and trim can be designed to accurately match original profiles
- Available with arched, radius, Gothic, and other custom lite patterns for historic compliance
- Supports Section 106, SHPO, and National Park Service (NPS) restoration requirements
- Historic replication engineering using field measurements or archival drawings
- Meets AAMA AW-100 Performance Class
- Reinforced corners and integral mullions
- Fixed configuration
- 3-1/4” frame depth
- Accommodates 1″ glazing
- Variety of panning and interior trim available
- Fixed configuration
- 4-1/2” frame depth
- Accommodates glazing 1” – 1-1/2”
- Exterior snap-in grid
- Variety of panning and interior trim available
- 3-11/16”, 4-11/16”, and 5-11/16” frame depth with 44mm polyamide thermal barrier and foam cavity fillers
- Composite frame construction for enhanced thermal performance
- Whole window NFRC U-Factors as low as 0.18
- AAMA AW-100 Architectural Performance Class
- Supports dual or triple insulating glass
- Narrow sightlines and clean, modern profiles
- Fixed, casement, awning, and hopper configurations
- Compatible with panning, receptors, anchors and accessories
- Optional between-glass blinds and muntin grids
- High condensation resistance and acoustic performance
- Historic-style profiles: beveled, cove, ogee, or square glazing stops
- Multiple frame depths: 2 7/8″, 3 7/8″, 4 7/8″
- AAMA AW-100 Architectural Performance Class
- Fixed, casement, awning, or hopper operability
- True-divided, tape-applied, or between-glass muntin grids
- Dual or triple insulating glass options
- Flush-vent operable design for clean aesthetics
- Ideal for historic preservation, institutional, campus, and adaptive reuse projects
- AAMA AW-100 Performance Class
- Polyamide thermal barrier technology
- Multiple frame depths (2½″, 3½″, 4½″)
- Dual or triple glazing for enhanced thermal and acoustic performance
- Integral venetian blinds available with hinged or lift-out access panels
- Broad operability portfolio: fixed, outswing or inswing casement, and projected awning and hopper configurations
- Seamless integration into punched openings or window wall
- Ideal for renovation or retrofit
- Engineered for durability
- 2 7/8”, 3 7/8” and 4 7/8” frame depth with extra-wide polyamide thermal barrier
- AAMA AW-100 Performance Class
- Fixed, project-out awning, project-in hopper, or inswing & outswing casement
- Flush vent construction reduces collection of dust and debris
- 4250i-XLT simulated double hung option
- Dual or triple glazed option with hinged or lift-out access panels
- 5/8” or 1” between-glass Venetian blinds available
- Slide-in heavy duty steel anchors
- 1/8” principal wall thickness
- Multi-lock hardware option for improved accessibility
- Head, sill and jamb receptors available
- Broad selection of renovation panning
- Interior/Exterior EPDM gasket/seals/thermal separation
- 3-1/2″ (88.9mm) aluminum frame depth for dual-glazed IGUs
- mitered and sealed corners, crimped to “L”-shaped clips for structural integrity
- two-color finish capability for interior and exterior surfaces
- maximum vent size up to 36-1/4″ x 60-1/4″ (921mm x 1530mm) with Euro multi-point lock (MPL)
- Interior/Exterior EPDM gasket/seals/thermal separation
- AAMA AW85 PG
- Sizes up to 78″ by 49″ and 37″ by 78″
- 4-1/4″ (82.55mm) aluminum frame depth with 1-3/4″ interior face width
- Allowance for 1″ dual-glazed IGUs
- A choice of hinges, handles, locks, screens and other hardware
- Factory-fabricated, multichambered rain screen, pressure-equalized design
- Projected or fixed configuration
- Vertical or horizontal stacking members
- Dual glazing with optional integral blinds
- Angle reinforced vent covers
- Wide variety of locking and operating hardware available
- Accessory line of subframes, mullions, and architectural sills
- Screen frames of extruded aluminum alloy available
- ADA accessibility with project out, outswing and inswing
- Thermally broken framing with insulating polyamide thermal barrier
- AAMA CW70 PG
- Sizes up to 66″ by 36″
- 2-11/16″ aluminum frame depth with 2-9/16″ face width
- Allowance for 1″ and 1-1/16″ dual-glazed IGUs
- A choice of hinges, handles, locks, screens and other hardware
- Factory-fabricated, sealed and crimped joinery with mitered sash and frame corners
- Thermally broken framing with insulating polyamide thermal barrier
- AAMA AW80 PG
- Sizes up to 66″ by 36″
- 2-11/16″ aluminum frame depth with 2-9/16″ face width
- Allowance for 1″ to 1-1/16″ dual-glazed IGUs
- A choice of hinges, handles, locks, screens and other hardware
- Factory-fabricated, sealed and crimped joinery with mitered sash and frame corners
- Projected configuration
- Thermally broken frames
- Accommodates 1/4″ to 1” glazing (1-1/8″ pocket)
- Structural silicone glazed option
- Mullion aligns with adjacent storefront horizontals
- Aluminum Screens available
- Thermally broken framing with insulating thermal barrier
- 3-1/2″ aluminum frame depth with 2-1/8″ face width
- Allowance for 1/4″ monolithic glazing or 1″ dual-glazed IGUs
- A choice of hinges, handles, locks, screens and other hardware
- Field-glazed, structural silicone-glazed (SSG) system
- Anodized & painted finishes available
- Projected and fixed configurations
- Thermally broken framing with insulating thermal barrier
- 2″ aluminum frame depth with 3-3/16″ face width (project-out) 2-1/4″ (fixed)
- Allowance for 1″ monolithic glazing or dual-glazed IGUs
- A choice of subframes, mullions, screens, sills and other hardware
- Factory-fabricated, pre-glazed units with pressure-equalized design
- Aluminum frame construction with mitered and angle-reinforced window corners

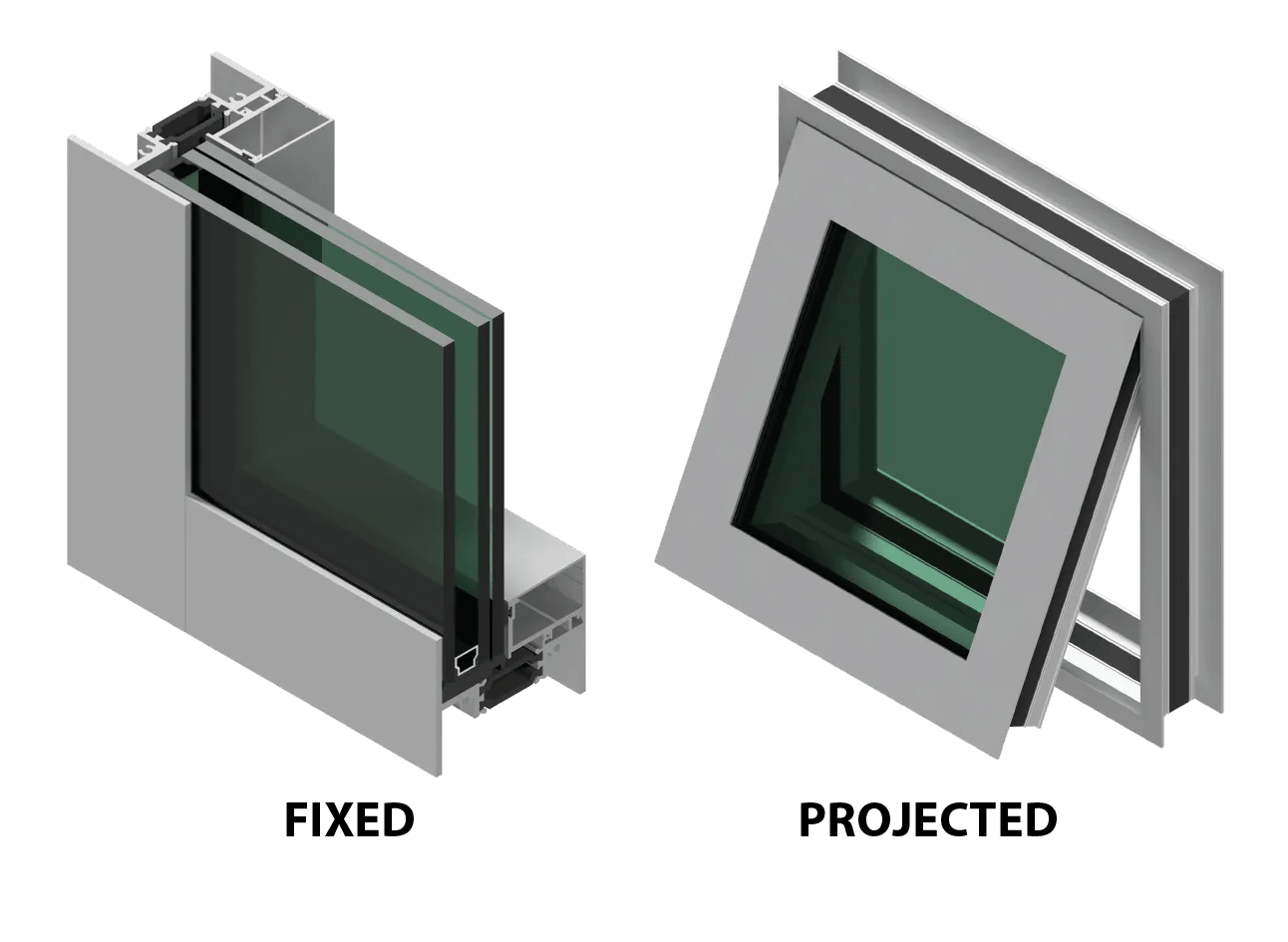

- Thermally broken framing with insulating thermal barrier
- AAMA AW120 PG
- 3-1/4″ aluminum frame depth with 2″ face width
- Allowance for 1-5/16″ dual-glazed IGUs
- A choice of subframes, mullions, screens, sills, optional snap-in muntin grids and other hardware
- Factory-fabricated, pre-glazed units with pressure-equalized design
- Screw-spline frame construction with angle-reinforced, back-sealed window corners
- 321G version accepts “snap in grids“
- 3-7/8” frame depth
- Thermally isolated system
- Accommodates glazing of 9/16”, 1”, 1-3/16”
- Impact-rated
- Fixed configuration
- Thermally broken framing and sash with insulating thermal barrier
- 3-7/8″ aluminum frame depth with 2-1/4″ face width
- Allowance for up to 1-1/18″ monolithic glazing or double-glazed IGUs
- A choice of locks, optional muntin grids and other hardware
- Factory-fabricated, pre-glazed units with screw-spline construction and continuous interlock meeting rails
- 6621G version accepts “snap in grids“
- Single hung configuration
- Thermally broken framing and sash with insulating thermal barrier
- 3-7/8″ aluminum frame depth with 3-3/4″ face width (at jambs)
- Allowance for 9/16″ monolithic glazing up to 1/18″ double-glazed IGUs
- A choice of of balance systems, locks, screens, optional muntin grids and other hardware
- Factory-fabricated, pre-glazed units with screw-spline construction and continuous interlock meeting rails
- 663G version accepts “snap in grids“
- Projected or fixed configuration
- Vertical or horizontal stacking members
- Dual glazing with optional integral blinds
- Angle reinforced vent covers
- Screen frames of extruded aluminum alloy available
- ADA accessibility with project out, outswing and inswing

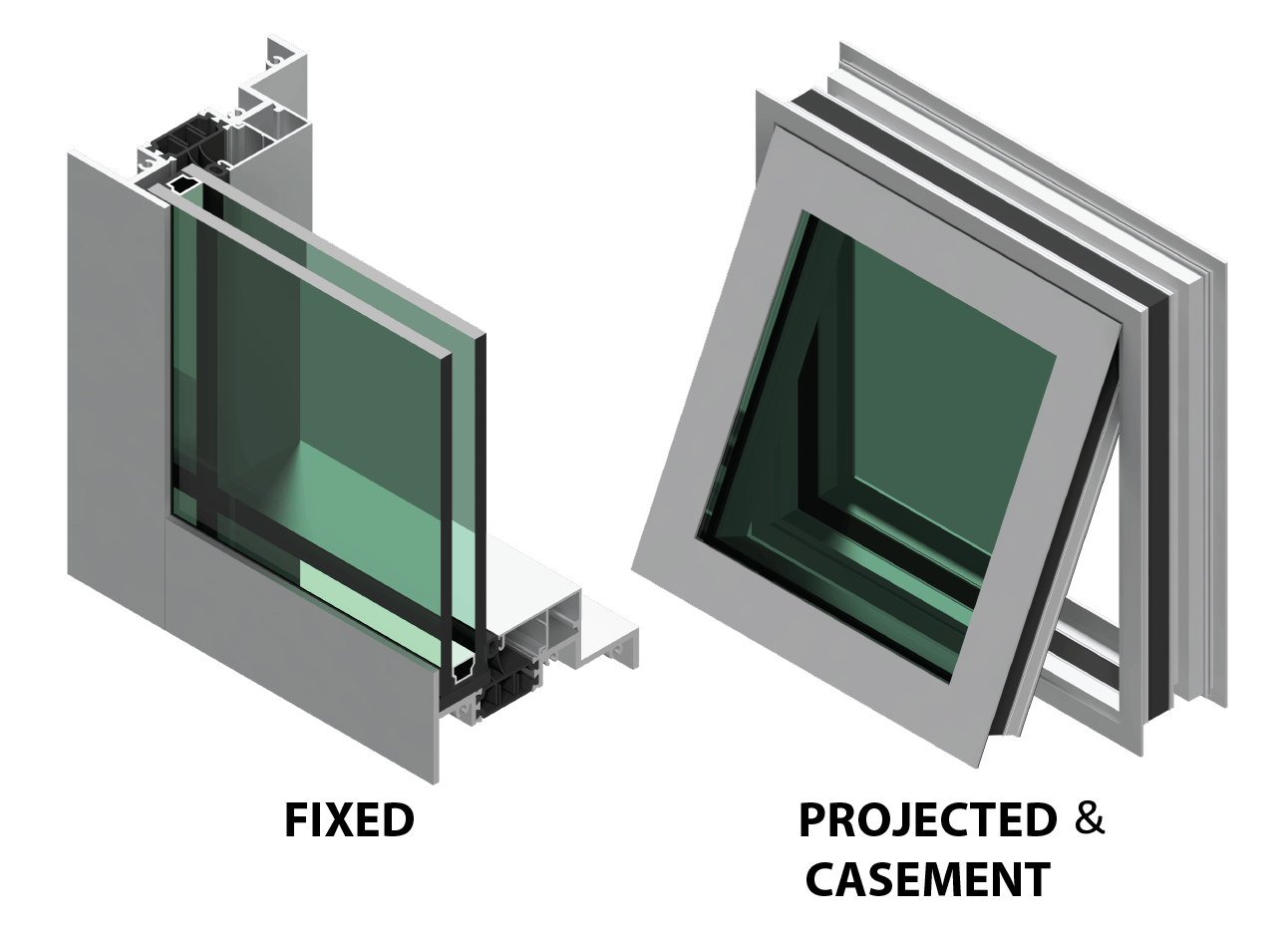

- 4-1/2” frame depth
- Fixed and projected configurations
- Angle reinforced vent corners
- Dual glazing with optional integral blinds available
- 450G version accepts “snap in grids“
- Single hung configuration
- Thermally broken framing and sash with insulating thermal barrier
- AAMA AW50PG
- 3-1/4″ aluminum frame depth with 3-1/2″ face width (jambs), 1-3/4″ (head), 4-13/64″ (sill)
- Allowance for up to 1″ double-glazed IGUs
- Optional panning, between-glass muntins, subframes, mullions, sills and other hardware
- Factory-fabricated, pre-glazed units
- 4-1/2” frame depth
- Double hung configuration
- Dual glazing with optional integral blinds available
- Accommodates 1″ glazing w/grid sash, 1-1/2” glazing w/non-grid sash
- Thermally broken framing with insulating thermal barrier
- 4-1/2″ aluminum frame depth with 3-1/16″ face width
- Allowance for 1-1/2″ dual- and triple-glazed IGUs
- Pre-glazed and available in numerous configurations
- U-Factor w/EFCO stock glass: 0.34
- HD (Heavy Duty) meeting rail detail for increased AW rated window
